Source photos & specificationsVeterinary Ultrasound
Model MS-M5Portable Veterinary Ultrasound Machine
The MS-M5 is a portable veterinary ultrasound machine for practices that need color Doppler imaging in a laptop-style format. Its 15-inch display, internal storage, probe flexibility and multilingual interface support mobile exams, general imaging and vascular workflows.
This page uses supplied product photos and specification documents. The signed quotation remains the final configuration.
Where it fits
Applications and buyer profile
Portable Veterinary Ultrasound Machine selection should start with the clinical task, not only a target price. Species, procedure frequency, expected image or monitoring requirements, available space and service model all influence the right configuration.
- Small-animal practices
- Mobile veterinary teams
- General imaging
- Vascular and abdominal exams
Configuration highlights
Documented features
- 15-inch high-resolution display
- Two active universal transducer ports
- B, Color, PDI, PW and M imaging modes
- DICOM 3.0 support and internal 128 GB storage
Key specifications
Technical snapshot
Condensed from the supplied product specification. Ask for the current configuration sheet before ordering.
- Platform
- Linux + ARM + FPGA
- Display
- 15-inch, 1024 × 768
- Weight
- Approx. 4.5 kg
- Storage
- Internal 128 GB
- Probe ports
- 2 active universal ports
- Battery
- Built-in lithium battery; ≥1 hour under working conditions
- Languages
- Chinese, English, Spanish, French, German, Czech and Russian
- Connectivity
- USB and DICOM 3.0 support

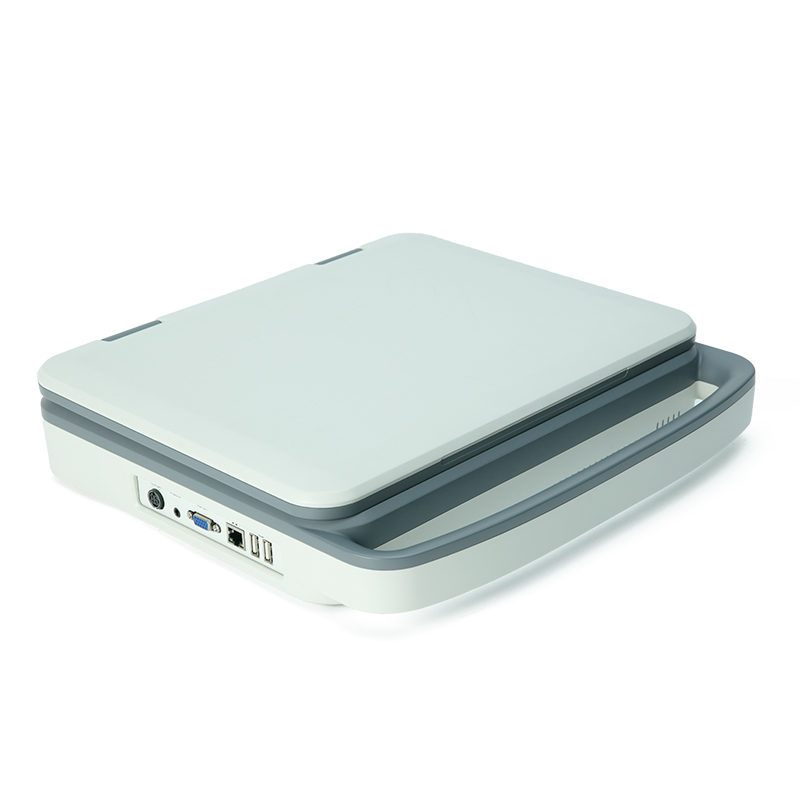

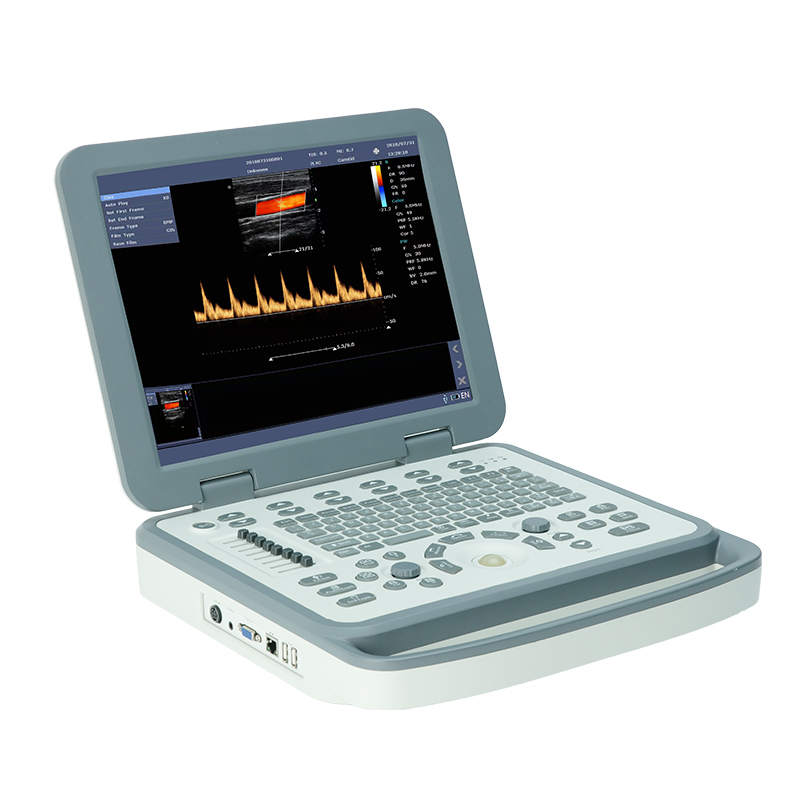

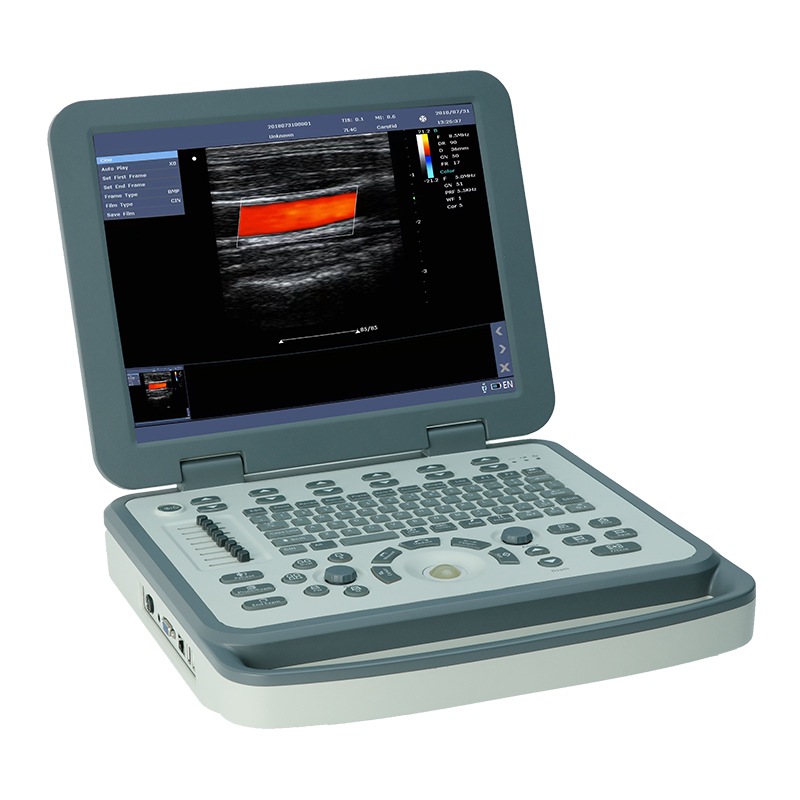

Product gallery
Supplied product photographs
Buyer questions
Before you request a quotation
How do I get the right portable veterinary ultrasound machine configuration?
Send the species, clinical use, daily or weekly case volume, essential features, destination country and preferred timeline. Mevidon can then compare configurations and list what is included.
Are the image and specifications final?
The page reflects supplied source files, but accessories, software, probes and packaging can vary. The signed quotation is the final commercial configuration.
What should be confirmed before payment?
Confirm model, included accessories, software, documentation, warranty scope, delivery terms, lead time, packing and after-sales contact in writing.
Need a matched configuration?
