Model MS-M73D Veterinary Ultrasound Machine
The MS-M7 combines portable color Doppler imaging with freehand 3D reconstruction. It is designed for teams that need broad ultrasound functionality, flexible probe choices and familiar clinical calculation packages in a mobile format.
This page uses supplied product photos and specification documents. The signed quotation remains the final configuration.
Where it fits
Applications and buyer profile
3D Veterinary Ultrasound Machine selection should start with the clinical task, not only a target price. Species, procedure frequency, expected image or monitoring requirements, available space and service model all influence the right configuration.
- Reproductive imaging
- Abdominal exams
- Cardiology support
- Mobile diagnostic services
Configuration highlights
Documented features
- Freehand 3D reconstruction
- Color, power and pulsed-wave Doppler modes
- Battery working time over 2 hours
- DICOM 3.0 and multiple peripheral interfaces
Key specifications
Technical snapshot
Condensed from the supplied product specification. Ask for the current configuration sheet before ordering.
- Display
- 15-inch LED
- Scanning depth
- 2–24 cm
- Imaging
- B, M, CFM, PDI, DPDI, PWD, Duplex, Triplex and THI
- Dynamic range
- >120 dB (image-processing specification)
- Battery
- 8,000 mAh; working time >2 hours
- Storage formats
- AVI, JPG, BMP, PNG, TIF and DCM
- Interfaces
- VGA, TV, USB and DICOM
- Standard probe
- C3.5/60 convex probe

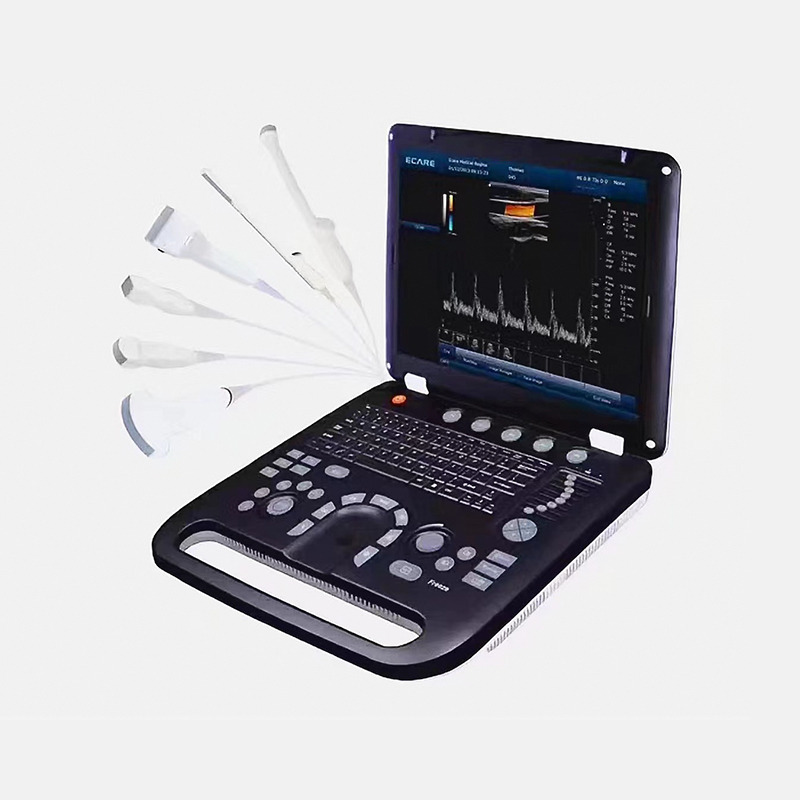

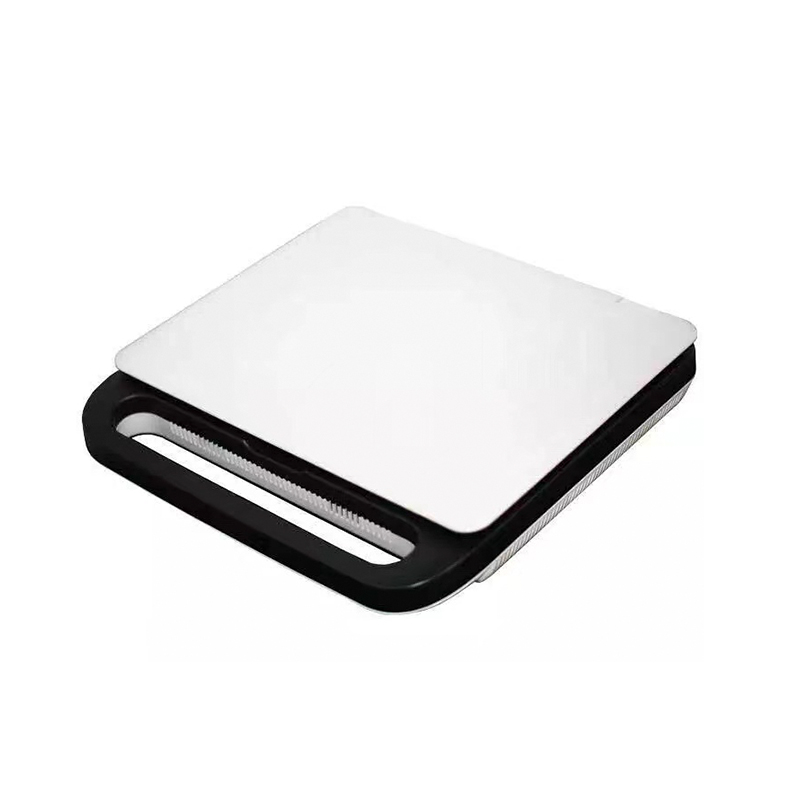

Product gallery
Supplied product photographs
Buyer questions
Before you request a quotation
How do I get the right 3d veterinary ultrasound machine configuration?
Send the species, clinical use, daily or weekly case volume, essential features, destination country and preferred timeline. Mevidon can then compare configurations and list what is included.
Are the image and specifications final?
The page reflects supplied source files, but accessories, software, probes and packaging can vary. The signed quotation is the final commercial configuration.
What should be confirmed before payment?
Confirm model, included accessories, software, documentation, warranty scope, delivery terms, lead time, packing and after-sales contact in writing.
