Source photos & specificationsVeterinary Ultrasound
Model MS-M94D Veterinary Ultrasound Machine
The MS-M9 is a portable 4D veterinary ultrasound machine with a 15-inch medical display, color Doppler, PW/CW Doppler and real-time 3D imaging. It supports a broad optional probe set for abdominal, cardiac, reproductive and small-parts applications.
This page uses supplied product photos and specification documents. The signed quotation remains the final configuration.
Where it fits
Applications and buyer profile
4D Veterinary Ultrasound Machine selection should start with the clinical task, not only a target price. Species, procedure frequency, expected image or monitoring requirements, available space and service model all influence the right configuration.
- Advanced reproductive imaging
- Cardiac exams
- Mixed-practice imaging
- Clinics needing 4D capability
Configuration highlights
Documented features
- Real-time 3D and 4D imaging
- B, C, PW, CW and combined display modes
- Up to 320 mm display depth
- DICOM 3.0 plus video and USB interfaces
Key specifications
Technical snapshot
Condensed from the supplied product specification. Ask for the current configuration sheet before ordering.
- Display
- 15-inch LED medical display
- Imaging modes
- B, B+B, 4B, B+M, M, C, PW, CW, 4D and combined modes
- Maximum depth
- 320 mm
- Dynamic range
- 0–270 dB
- Gray scale
- 256 levels
- Cine loop
- ≥1,200 frames
- Interfaces
- Video, USB and DICOM 3.0
- Net weight
- Approx. 6.3 kg

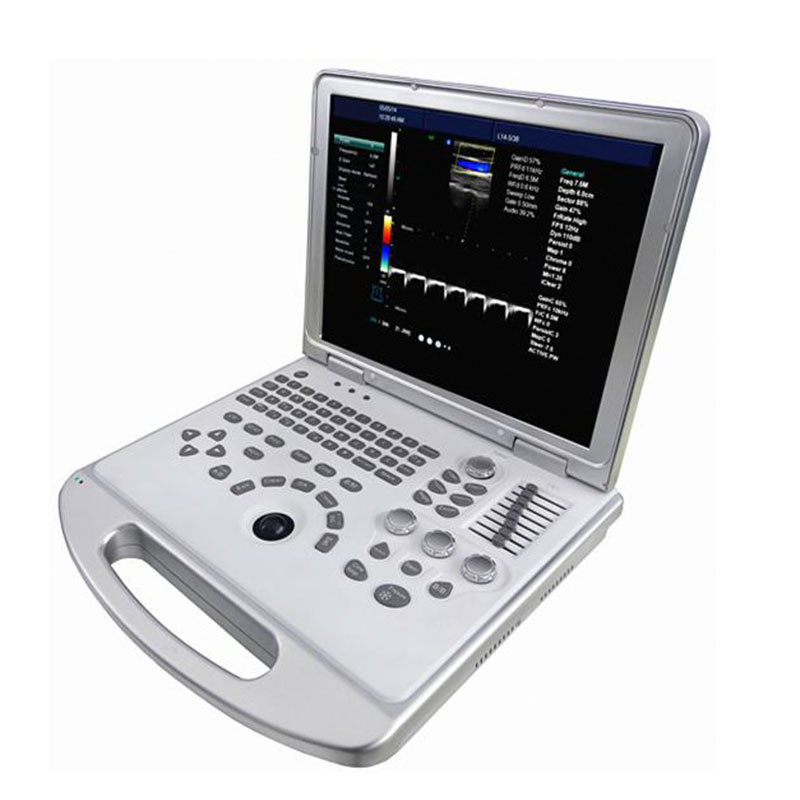

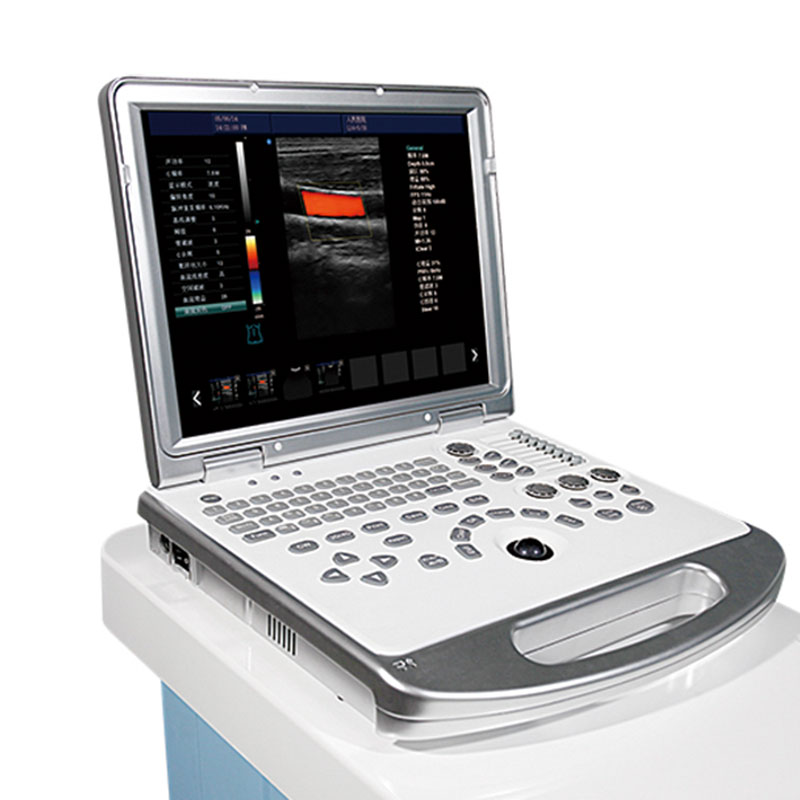

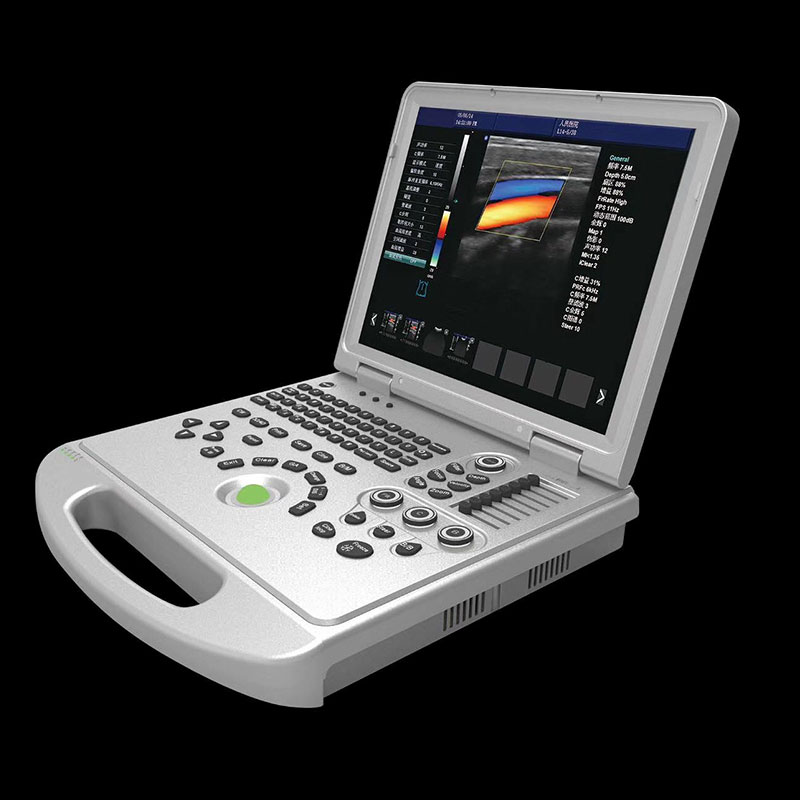

Product gallery
Supplied product photographs
Buyer questions
Before you request a quotation
How do I get the right 4d veterinary ultrasound machine configuration?
Send the species, clinical use, daily or weekly case volume, essential features, destination country and preferred timeline. Mevidon can then compare configurations and list what is included.
Are the image and specifications final?
The page reflects supplied source files, but accessories, software, probes and packaging can vary. The signed quotation is the final commercial configuration.
What should be confirmed before payment?
Confirm model, included accessories, software, documentation, warranty scope, delivery terms, lead time, packing and after-sales contact in writing.
